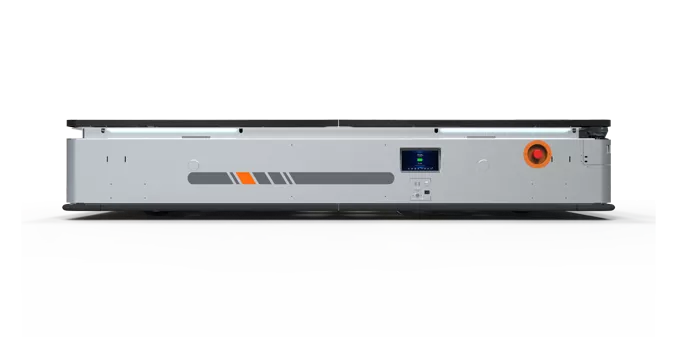

OMNI - Hangzhou Iplusmobot Technology Co.,Ltd

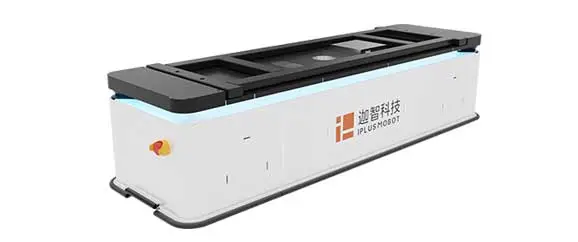

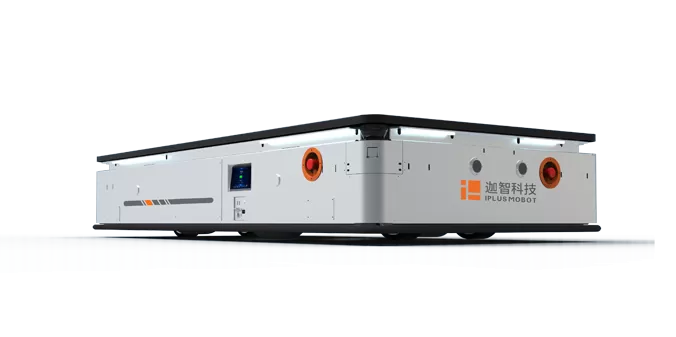

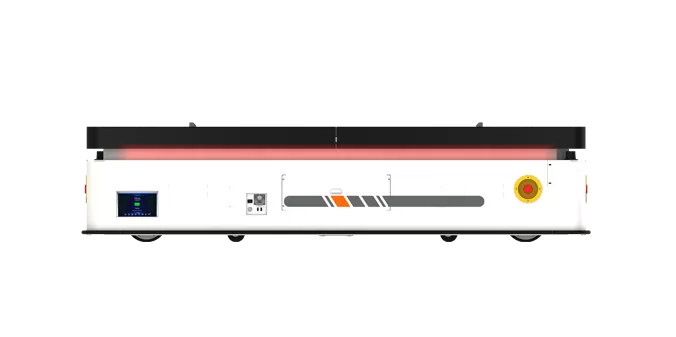

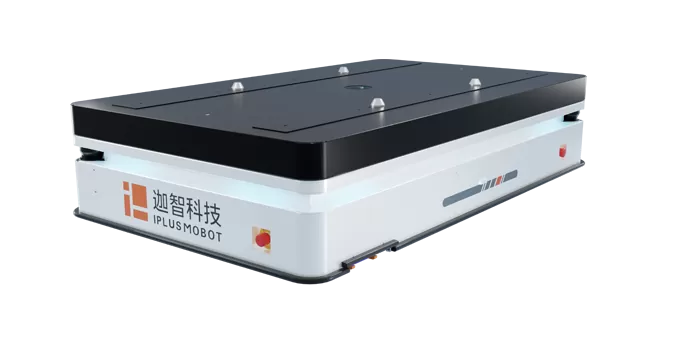

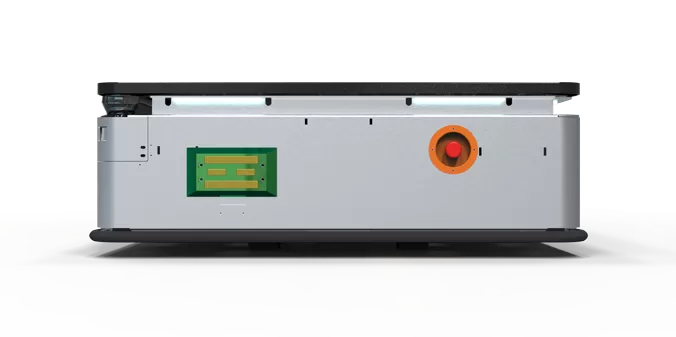

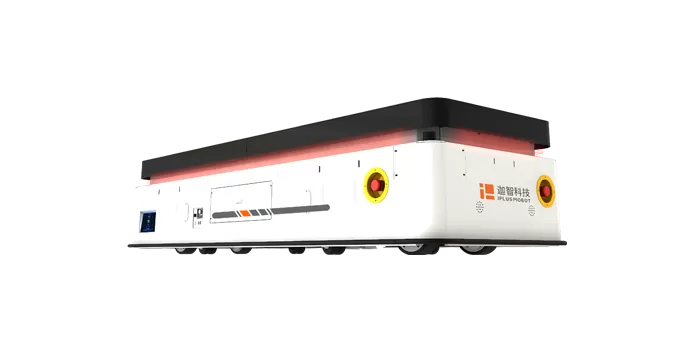

OMNI 1.5T

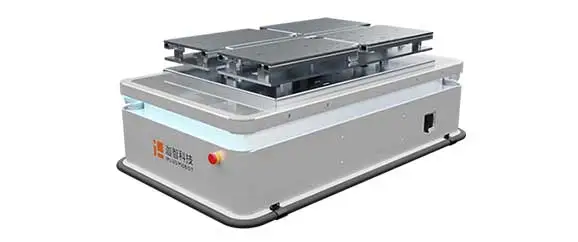

OMNI 2.5T

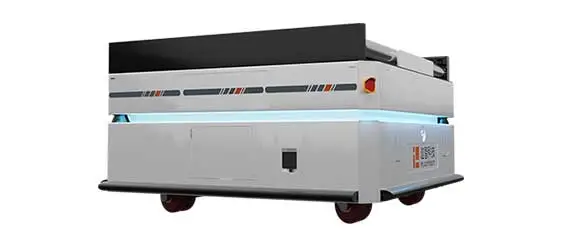

OMNI 3.5T

OMNI 5T

Laser SLAM+Vision+IMU

Hybrid Navigation
360°omni-direction

Drive Mode
±2mm/0.5°

Docking Accuracy
1,500

Payload（kg）
80

Lift Height(mm)
≥8

Runtime

Download product data

Omni-directional mobile robot, Omni wheel robot kit, Omni mobile robot, Smart manufacturing for medical device

Basic Parameters

Touch screen 7”

Steering wheel

Performance

Docking Accuracy ±2mm/0.5°

Position Accuracy ±10mm/1°

Battery

Charging Time≤ 2h

Operating Time ≥ 8h

Environment

Ground slope 3°

Max. gap tolerance ≤ 35mm

Max. ground elevation difference ≤ 10mm

Full load speed 1.2m/s

No-load speed 1.5m/s

Temperature 0-40°C

Humidity 10%-90%

Safety System

Laser obstacle avoidance + Sound and light alarm + Bumper + 3D camera(optional) + Emergency stop

Communication

IEEE 802.11 a/b/g/n/ac/ax 2.4G/5G Hz

OMNI 1.5T Omnidirectional Mobile Robots Main Function

Autonomous Positioning and Navigation Intelligent Path Planning

Omni-Directional Travel

Autonomous Stopping When Meeting Obstacle Intelligent Bypassing the Obstacle

Material Shelf Recognition Operation Platform Recognition

Docking and Interaction with the Third-Party Equipment

Execute Fleet Dispatch Task

Self Charging

OMNI 1.5T Omnidirectional Mobile Robots Advantages

Omnidirectional Movement

Suitable for the plants and workshops whose space is limited.

Large load of 1T to 3T

Take into account better stability and operational efficiency at the same time.

Flexible Bearing Platform with Variable Area

Meet the requirements of pallet transport in different shapes and sizes.

Flexible Adaptation to Various Carriers

Own technologies for quick adaptation.

Automatic Loading and Unloading of Materials of High Precision

Support ±2mm/0.2° docking operation.

It's Easy to Use and Operate

Three steps of quick start.

Real-Time Logistics Visualization

With CLOUDIA, it can be accomplished that materials can be controlled and traced in the whole process.

Verification on Large Scale

Verification on multi-industry application scenes.

Matching Products

CLOUDIA

Fleet Management System

Charging Station
