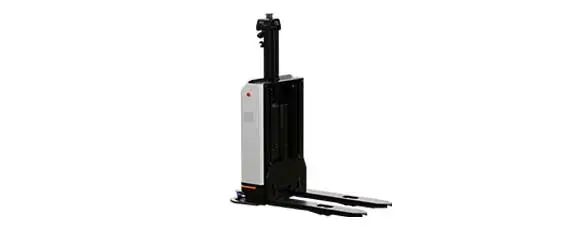

FOLA DN1416

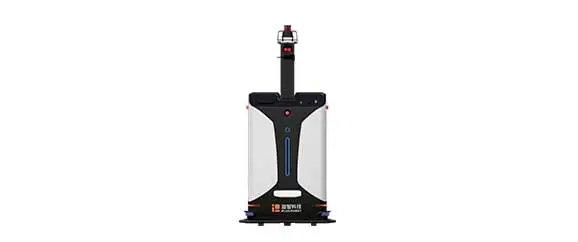

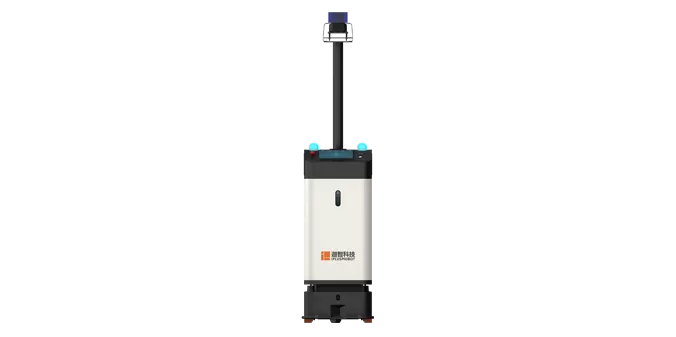

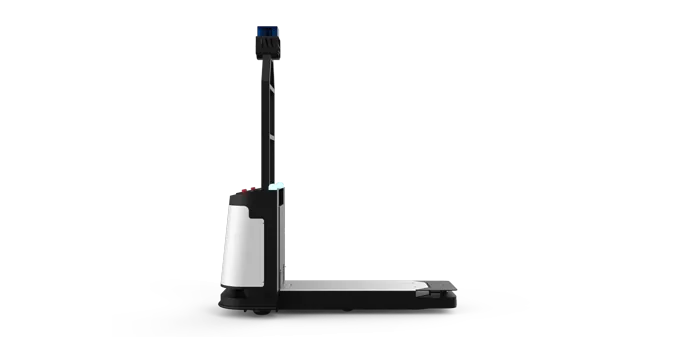

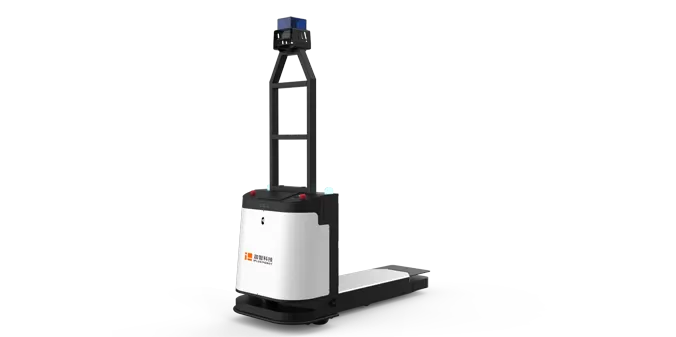

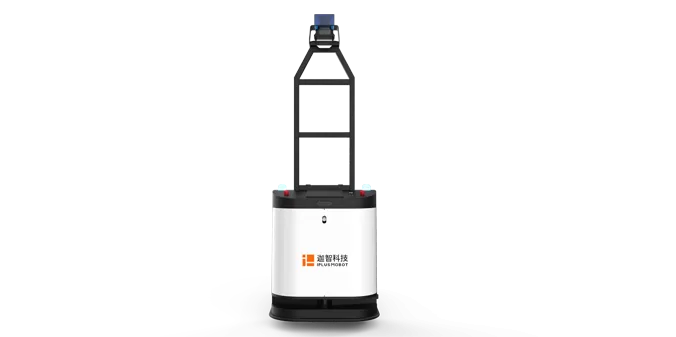

FOLA QN1416

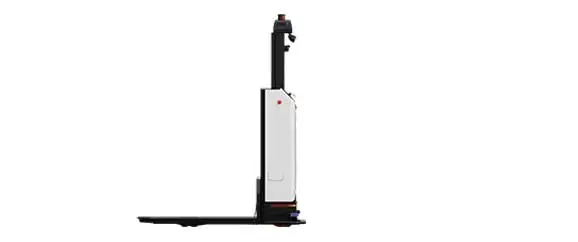

FOLA BN2001

Laser Slam+Vision+IMU

Hybrid Navigation
1,400kg

Payload(kg)
±10mm / ±1°

Repeatability
1,600mm

Optional Lift
2,410mm

Width of Right-angle Stacking Channel
6H

Runtime

Artificial Intelligence in Transportation Industry-Automated Logistics Company

FOLA QN1416, intelligent forklift, robotic forklift, artificial intelligence in transportation industry, artificial intelligence and transportation, logistic and automation for an automated logistics company by Iplusmobot.

Basic Parameters	Self weight 1890kg Dimensions (lwh) 207712002236mm Touch screen 7”	Battery	Lithium-ion Runtime >6H Charge time 2H	Safety System	Laser obstacle avoidance + 3D camera(optional) + Sound and light alarm + Bumper + Emergency stop



Performance	Rated payload 1400 kg Lift height 1600mm Load center 500mm Aisle width 2410mm		Docking accuracy ±10mm/±1° Max. Site area>100000m² Max. drop of the passable gap: 10mm Max. width of the passable gap: 30mm		No-load speed 1.5m/s Full load speed 1.35m/s Full load max. Gradability 3% No-load max. Gradability 5%

Forklift AMR Main Function

Autonomous Positioning Navigation Intelligent Path Planning

Open Type Pallet Auto Horizontal Transportation

Obstacle Detect and Auto Stop Intelligent Obstacle Avoidance

Easy Integration With Third Party Facilities

Pallet Recognization Shelf Detection

Execute Fleet Scheduling Task

Auto Charging

Forklift AMR Advantages

Small Size & Flexible Movement

360° Pivot steering

Light Weight & Heavy Load

Cross floor transportation, greatly improve the efficiency.

Millimeter Level Operation Accuracy

Ensure the pick-up safety of high operation accuracy with forklift robot.

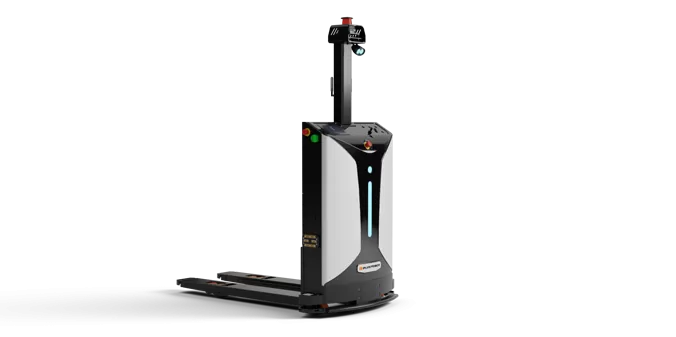

360° Navigation Laser + 270° Safety Laser

Real-time environmental monitoring, dynamic work environment, narrow path transportation.

Real-Time Logistic Data Visualization

Using CLOUDIA robot fleet management software to achieve production materials in whole process control.

Forklift AMR Matching Products

CLOUDIA

Robot scheduling robot fleet management software

CARLY

Robot control & teach-in system

Charging Station
